Evopur E220 Polyurethane & Polyurea Spray Foam Machine

Warranty 2 year warranty, 10 years of spare part possession
Economic For the ones who is searching a solid, economic solution
Easy Maintenance Service maintenance is easy

Evopur E220, It is a best match for small application areas and repair jobs. Biggest advantages are low weight and low pressurised air. It is the best option for the areas where hydraulic units having hard time to enter.

Evopur E Series are ATG’s beginner level single phase spraying machine.

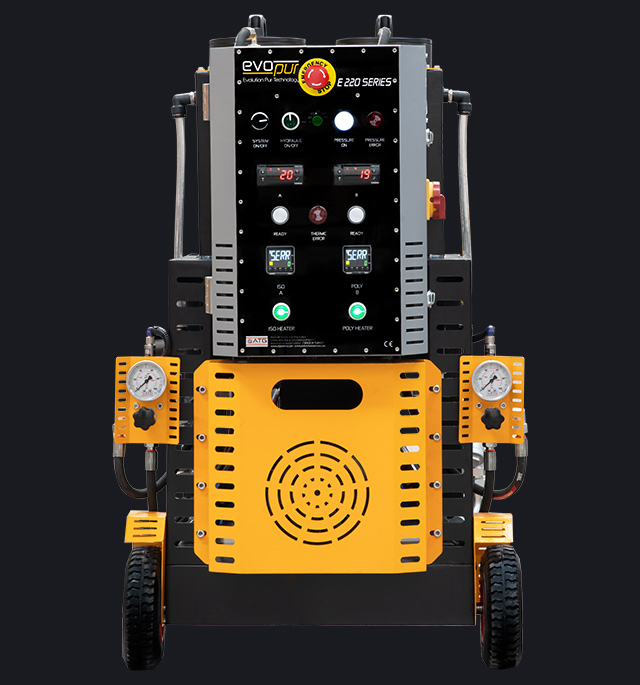

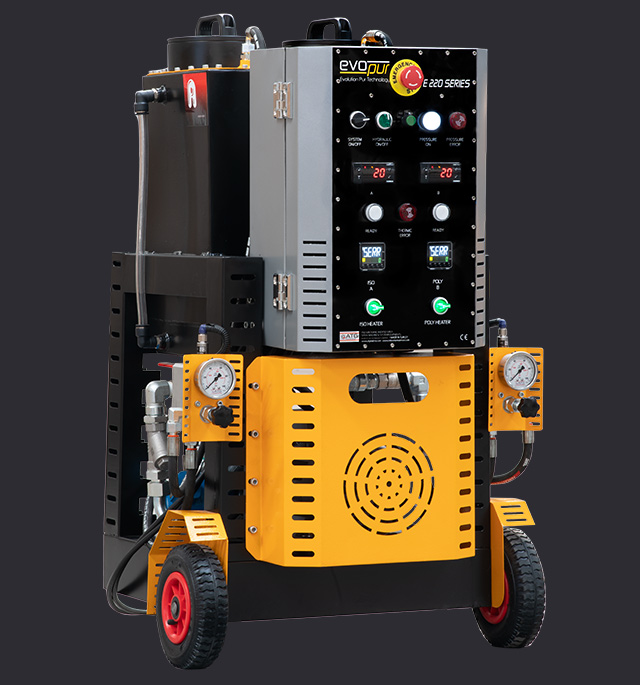

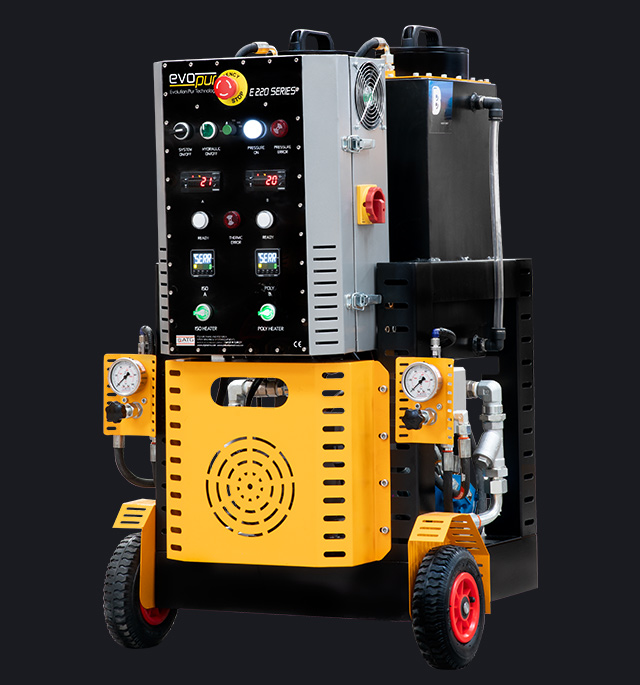

Evopur E220 Spray foam insulation machine

It is the best option for the areas where hydraulic units having hard time to enter.

Did you watch the PU machine video?

Ask us if you have any questions

Evopur E220 Technical Information.


 Europe-Asia-Africa-Australia America
Volt 220 110
Max KW 3,5 3,5
Ampere 18 24
Phase 1 Ø Y 1 Ø Δ
HZ 50 60
Generator KW 7,5 9
Maximum Fluid Output (at 25°C ambient temperature) 6 kg 6 kg
Maximum Fluid Pressure (at 25°C ambient temperature) 1,0 mpa 100 bar 1,0 mpa 100 bar
Adjustable Fluid Pressure 10 bar - 100 bar 10 bar - 100 bar
Max Hose (mt) 30 30
Weight 136 kg 136 kg
Preheater KW 2000 2000
Hose Heater Yok Yok
Max Fluid Temperature 50°C 50°C
Tank Capacity (Each) 30 lt 30 lt
Voltage Codes
Ø FAZ
Δ DELTA
Y WYE

Machine technical specifications

Download Datasheet
