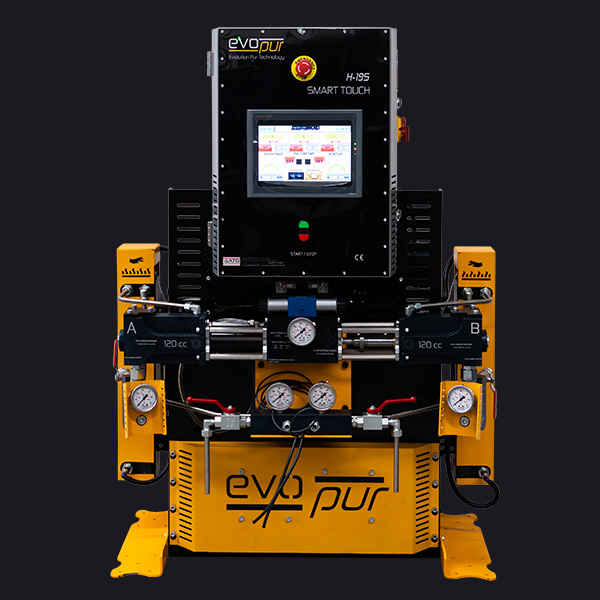

H-19S Smart Touch Polyurethane & Polyurea Spray Foam Machine

Warranty 2 year warranty, 10 years of spare part possession
Economic For the ones who is searching a solid, economic solution
Easy Maintenance Service maintenance is easy

We are manufactering best quality proportioners for more than a decade. ATG has several distributors around the world for spray polyurethane foam machines, spray polyurea machines and injection machines. Contact us to learn if you have a nearby distributor or to be a distributor for your region.

Spray foam insulation machine

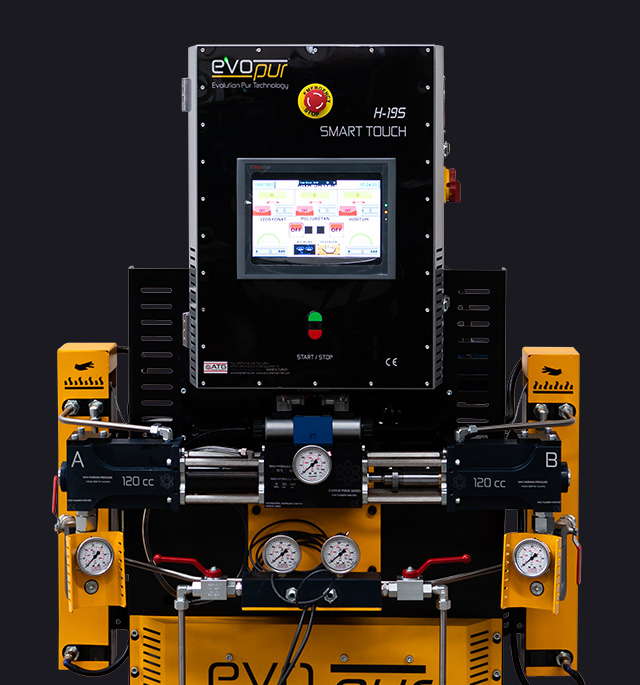

H-19S Smart Touch Spray foam insulation machine

Generator integrated system is lighter, stronger than ever and solid as always. Designed for your comfort by ATG.

Did you watch the PU machine video?

Ask us if you have any questions

H-19S Smart Touch Technical Information.


 Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Max KW 23 (23.000 W) 23 (23.000 W)
Ampere 45 54
Phase 3 Ø Y 3 Ø Δ
Hz 50 60
Generator(KW) 33 33
Maximum Fluid Output (25°C ambient temp) 12-19 kg/dk 12-19 kg/dk
Max. Fluid Pressure (25°C ambient temp) 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure 30 bar - 150 - 240 bar 30 bar - 150 - 240 bar
Oil Pressure 72 bar 72 bar
Preheater (KW) 7,5 7,5
Hose Heating (KW 4 4
Fluid Output (ISO) 16-1.5 metric 1/2 Unf
Fluid Output (POLY) 18-1.5 metric 9/16 Unf
Fluid Input (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 90°C / 194°F 90°C / 194°F
Max. Hose Length (Mt.) 120 120
Hydraulic Oil Capacity(Lt.) 34 34
Net Weight 270 kg (270.000 gr.) 270 kg (270.000 gr.)
Voltage Codes
Ø PHASE
Δ DELTA
Y WYE

Machine technical specifications

Download Datasheet
